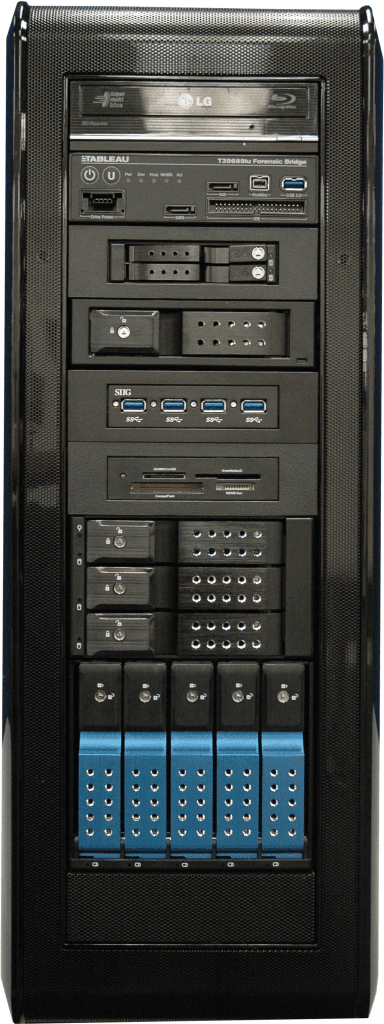

HTCI ‘Standard w/RAID’

$7,295.00

The addition of a Raid Package gives the HTCI “Standard” the capability of being an all in one system for all your forensic needs.

Compare
Category:

Description

The HTCI “Standard with Raid” edition is hands down the absolute best value for the processing power in the forensic market. The HTCI “Standard with RAID” was designed to bring a forensic platform with the most performance at a great value to all professional forensic investigators. Included in each system is a demo license of HTCI LABS DART software for complete cell phone analysis capability without any additional equipment required.

Features

  • An industry setting standard of 3 years parts and depot labor warranty.
  • A High Speed Intel i7 – 5820K Six Core Processor clocked at 3.3GHz (3.6GHz Turbo) Cooled by a Intel Sealed Water Cooling System to give you stable high-speed performance.
  • 32GB of High Speed High Capacity DDR4 2400 Quad Channel Memory
  • Tableau T35689iu Forensic Bridge
  • An NVidia GeForce GTX 750Ti with multi-monitor support to ensure a silky smooth experience whether you are processing cases, writing reports, or viewing evidence
  • A ultra-fast 128GB SATA 6Gb/s SSD OS Drive to give you lightning fast access to your HTCI System
  • A High Capacity, High Speed 2TB 7200 RPM SATA 6Gb/s Hard Disk Data Drive to store files.
  • A High Capacity, RAID 6 Array Connected to a Dedicated RAID Card. RAID 6 Gives you a high speed, failure resistant RAID Array.
  • Dual 10/100/1000 Mbps LAN Ports, with Teaming function allowing two single connections to act as one for twice the bandwidth.
  • High Speed USB 3.0, and XFast USB greatly improving the speed of the onboard USB 2.0 ports.
  • High Speed 6Gb/s eSATA Ports, giving you the fastest way to connect external devices to the system.
  • An Integrated Top Mounted SATA Hard Drive Dock for easy access to Bare SATA Hard Drives.
  • 3x Hot Plug SATA Tray-less Bays, giving you access to easy to use, high speed hard drive bays for extra storage.
  • An Integrated Write-Blocked Multi-Card Reader to ensure forensically sound access to all types of media cards.
  • Integrated Write-Blocked Forensic Bridges, With USB 3.0, SATA, IDE, SAS, and FireWire Connections.
  • A highly efficient 1300 Watt 80 Plus Gold Certified Fully Modular Power Supply to ensure stability, and high power capacity for all your needs.
  • 22 Inch LED Monitor
  • Wireless Keyboard / Mouse Combo (Wired available at no charge for DOD or other such requirements)



Tech Specs

Supported CPU
CPU Socket Type LGA 2011-v3
CPU Type Core i7(LGA 2011v3)
CPU
Processor Number i7-5820K
Number of CPU Cores 6
Number of CPU Threads 12
CPU Speed (GHz) 3.3GHz
Turbo Speed (GHz) 3.6GHz
CPU Cache 15MB
Lithography 22nm
Heatsink Corsair Hydro Series H80i Liquid Cooled Solution
Chipsets
North Bridge Intel X99 Chipset
Memory
Number of Memory Slots 8 x DIMM
Memory Speed DDR4 2400
Memory Included 32GB (4x 8GB)
Maximum Memory 128GB
Channel Supported Quad Channel
Expansion Slots
PCI Express x16 7
Video Card
Chipset Manufacturer NVIDIA
GPU GeForce GTX 960
Memory Size 2GB GDDR5
Memory Speed 7010 MHz
Interface DVI-I, DisplayPort, Display, Display, HDMI
Storage Devices
1 x SATA Express port, gray, compatible with 2 x SATA 6.0 Gb/s ports
1 x M.2 x4 Socket 3, gray, , with M Key, type 2260/2280 storage devices support (PCIE mode)
Intel® Rapid Storage Technology supports*5
ASMedia® SATA Express controller : *6
1 x SATA Express port, gray, compatible with 2 x SATA 6.0 Gb/s ports
ASMedia® SATA 6Gb/s controller :
2 x eSATA 6Gb/s port(s)compatible with 2 x SATA 6.0 Gb/s ports
SATA 6Gb/s 8
Storage Configuration
OS Drive 512 GB SATA 6Gb/s SSD Drive
Temp/DB Drive 512GB SATA 6Gb/s SSD Drive
Cache Drive 1 x M.2 512 GB
Data Drive 2TB 7200 RPM SATA 6Gb/s Hard Disk Drive
RAID Drives 4x 2TB 7200 RPM SATA 6Gb/s Hard Disk Drives in RAID5 Configuration (3TB and 4TB drive options available)
Onboard Audio
Audio Chipset Realtek ALC1150
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Intel 1210-AT
Second LAN Chipset Intel 1218LM
Max LAN Speed 10/100/1000Mbps
Rear Panel Ports
Q-Code Logger button 1
LAN (RJ45) port(s) 2
USB 3.0 10 x USB 3.0
Optical S/PDIF Out 1
Audio Ports 8 Channel
Front I/O Ports
USB 2.0 2x USB 2.0
USB 3.0 4 x USB 3.0 (2 Top Mounted, 2 Front Mounted)
eSATA 1x eSATA
Front Audio 2x Front Audio (Headphone and Microphone)
Front Mounted Bays
Optical Disk Drive 1x Blu-Ray Burner Drive
OS/Temp/Cache/DB Drive Bay 2x 2.5″ SATA Trayless
Data Drive Bay 1x SATA Trayless
Front I/O Panel 1x 4 Port USB 3.0 Panel
Multi-Card Reader 1x Write Blocked Multi-Card Reader
Forensic Bridge Tableau T35689iu (USB 3.0, SATA, SAS, IDE, and Firewire 800)
SATA Bay 3x SATA 3.5″ Trayless Bays
Internal I/O Connectors
Onboard USB 2.0 2 x USB 2.0 Headers
Onboard USB 3.0 2 x USB 3.0 Headers
SATA Express connector: gray, compatible with 2 x SATA 6.0 Gb/s ports 2
Front Audio Header 1x Front Audio Header
Features
On-Board Power Button Yes
On-Board Reset Button Yes
On-Board CMOS Clear Yes
On-Board Diagnostic LED Yes
PCI Express Revision 3.00
Operating System
Windows 8.1/10 64-Bit Professional
Power Supply
Maximum Wattage 1300 Watts
80 Plus Certification 80 Plus Gold Certified
Modular Fully Modular Power Supply
Software Pre-Installed
Data Analysis Reporting Tool HTCI DART-2 week demo
USB Read/Write Toggle HTCI USB Toggle
HTCI SIM Utility Read and Duplicate SIM Cards
System Dimensions
Width 9.06 Inches
Height 24.33 Inches
Depth 26.10 Inches
Weight 65+ Pounds
Peripherals Included
Monitor 22 Inch LED Monitor
Keyboard / Mouse Wired or Wireless Combo
Sim Card Reader USB Sim Card Reader
Tool Kit Multi-Piece Toolkit to assist in Digital Evidence Gathering
