TK8u Forensic USB 3.0 Bridge Kit

  • Home
  • Products
  • TK8u Forensic USB 3.0 Bridge Kit
Home / Tableau Forensic Products / TK8u Forensic USB 3.0 Bridge Kit
D.A.R.T. PRO V 3.2
$1,699.00
TK35u USB Forensic Bridge Kit
$448.00
TK8u Forensic USB 3.0 Bridge Kit

TK8u Forensic USB 3.0 Bridge Kit

$524.00

TK8u Forensic USB 3.0 Bridge Kit

Buy with
Add to Wishlist
Compare
Category: Tableau Forensic Products
  • Description
  • Additional information
  • Tech Specs
  • Reviews (0)

Description

TK8 Forensic USB 3.0 Bridge Kit

– AMAZING FORENSIC PERFORMANCE. GREAT PRODUCT VALUE.
Dealing with big storage and bigger data presents today’s forensic examiner with greater challenges than ever before. The new Tableau T8u Forensic USB 3.0 Bridge delivers best-in-class, secure, hardware-based write-blocking of USB mass storage devices.
– WRITE-BLOCKED FORENSIC IMAGING IN EXCESS OF 300 MB/SECOND
The T8u is the first Tableau Portable Family forensic bridge that supports write-blocked imaging of USB 3.0 devices through a SuperSpeed™ USB 3.0 host computer connection. T8u’s powerful combination of a new, high-performing product architecture and USB 3.0 technology provide the speed you need to image USB 3.0 flash drives, multi-terabyte hard drives, or all USB 2.0/1.1 drives conforming to the mass storage “bulk-only” specification.

Using controlled, real-world configurations and modern forensic imaging software, we’ve measured forensic data transfer with the T8u in excess of 300 MB/second (while simultaneously calculating MD5 and SHA-1 hashes). No other USB write-blocker can match the T8u’s forensic performance and value.

VIEW DEVICE INFORMATION WITH BACKLIT LCD

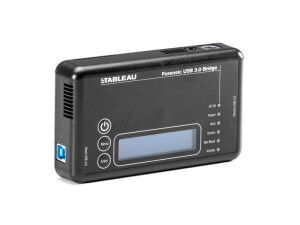

The T8u presents various bridge and device information via an integrated, backlit display. Device status, device information, logical unit (LUN) select, and bridge information are easily accessible using the T8u’s front panel membrane menu button.

For a closer look at the Tableau T8u, browse the images below or related content to the right. The Tableau T8u will fit in your current multi-product write-blocker kit. The T8u accepts the new TP5 or existing TP2 power supplies. Contact Guidance Software or your preferred Authorized Tableau Reseller to upgrade your USB imaging capabilities to the T8u today.

Kit includes:

One TP2 Power Supply
One 1m USB 3.0 Cable

Related

Additional information

Weight 1 lbs
Dimensions 8 × 6 × 4 in

Tech Specs

Connectors: Host Side
  • One USB 3.0 Standard-B Connector Left Side
  • One USB 3.0 Standard-A connector Right Side
  • Connectors:Top Side DC Input
  • One 5-pin Mini-DIN connector for the Tableau TP2 power supply, and one bayonet connector for the Tableau TP5 power supply
  • Switches: DIP Switch
  • The 4-position DIP switch configures user-selectable options that aren't required for normal operation. See the T8u User Guide for more information.
  • User Interface: LCD

  • 2 Row x 16 Column monochrome LCD character display with LED Backlight
  • User Interface: Buttons

  • Three buttons: Menu and Enter buttons for navigation, plus an On/Off button to control the power to the T8u

  • Other Features: Status LEDs

  • Six LEDs: DC IN, Power, Host (detect), Device (detect), Wrt Block (enabled), Activity
  • Compatibility: USB Device
  • USB 3.0 and older devices that conform to the USB Mass Storage Class specification and support the Bulk Only Interface Protocol
  • Compatibility: Host OS
  • Microsoft Windows version 7, 8, 10,
    Macintosh OS X,
    Most Linux distributions
  • Physical / Environmental: Power
  • 12 watts typical operating (not including USB device)
  • Physical / Environmental: Supply voltage (DC IN)

  • +5V @ 1.2A (max), +12V @ 0.6A (max) when powered using TP2 connector
    +12V @ 1.2A (max) when powered using TP5 connector
  • Physical / Environmental: Supply voltage (DC OUT)
  • +5VDC @ 0.9A (Max)
  • Dimensions
  • 5.75 in. (L) x 3.25 in. (W) x 1.125 in. (H)
  • Weight
  • 7.2oz (204g)
  • Operating temperature range
  • 0 to 55 degrees C (no airflow)
  • Storage temperature range
  • -20 to 60 degrees C
  • Relative humidity
  • Up to 90% (non-condensing)
  • Warranty
  • One year parts and workmanship from date of purchase
